Receipt write-back

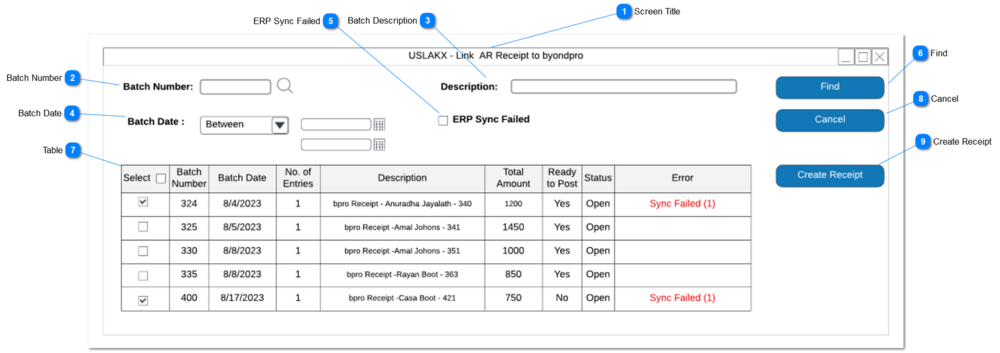

Receipt write-back

Screen Title

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Screen Title	Display screen title: Link AR Receipt to byondpro

Batch Number

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Lookup	This is a lookup to the AR Reciept batch numbers	Table: ARBTA Field: CNTBTCH		Numeric

Batch Description

.

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	This allow user to search batches based on description.	Table: ARBTA Field: BTCHDESC		Text

Batch Date

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Date Range	This is function will allow the user to filter transaction based on batch date.	Table: ARBTA Field: DATEBTCH		Date

ERP Sync Failed

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Checkbox	This will allow the user to filter receipt with ERP sync failed status.	1. Ticking the checkbox will filter batch record that failed to sync with byondpro from sage 300. 2. Unticking the checkbox will not apply the filter above.

Find

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Action Button	Clicking the action button will filter the batch records based on the filter criteria.	All filter criteria kept null it will list batch records without any filters. All unprocessed batch records will be filtered. also system will also load batch records state the status as "void" entries which were not written back to byondpro.

Table

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Check Box	Selection check-boxes will allow the user to select multiple batch records to process receipt write-back	This allow to select multiple batch records. selecting the checkbox on the header will select all batch records filtered on the table.
Read Only Text	Batch Number	Table: ARBTA Field: CNTBTCH		Text
Read Only Text	Batch Date	Table: ARBTA Field: DATEBTCH		Text
Read Only Text	No. of Entries	Table: ARBTA Field: CNTENTER		Text
Read Only Text	Description	Table: ARBTA Field: BTCHDESC		Text
Read Only Text	Total Amount	Table: ARBTA Field: AMTENTER		Text
Read Only Text	Ready to Post	Table: ARBTA Field: BATCHSTAT If BATCHSTAT = "Ready To Post" = Yes If BATCHSTAT = NOT "Ready To Post" = No		Text
Read Only Text	Status	Table: ARBTA Field: BATCHSTAT		Text
Read Only Text	Error	Display the receipt write-back sync status from the receipt write-back function. Table: Receipt Field: Rece_accpacSyncError		Text

Cancel

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Button	This is a function to close the open window.

Create Receipt

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Function	This is a function to read the receipt entries in the selected batch and write receipts entries in byondpro.	1. Receipt creation function will apply to selected batches from filtered batch record. 2. Write 1 byondpro receipt record for each line entry in the byondpro batch. Detailed field lists below. 2a. Repeat receipt header data on each byondpro receipt. 2b. Every byondpro receipt entry to will support multiple payment types such as Card, Cash, Check USA and Cheque. Prerequisite: creation of Payment Type created in sage300 which support receipt function in byondpro. 3. If ARTCR/CNTBTCH field is null (i.e. not matched to a source reciept) skip the line entry and continue to process. 4. Set the ERP sync field to completed. 5. Finish the processing sequence with a completion message that lists the unmatched receipt entries. 6. Receipt written back from sage 300to byondpro will identify receipt set-off against repayment plans installment. Refer Receipts Recurring Payment for rules on how $ are applied 7. If CCTRANSTTS = "SPS Void Transaction Completed" in sage 300 receipt table (ARTCR), Rece_Status will be marked as "Voided" in byondpro. If a canceled receipt was settled against repayment plan/ sales order the installment status will be reversed back to original status as per Repayment Plan rules. Outstanding balance be revised by adding amount of canceled receipt. E.g. - Installment value - 1000 Paid Amount - 1000 Cancel Receipt Amount - 500 Change Status - Unpaid 7. warning will be triggered if the batch records line entries exceed more than 200 records. If the user click okay system will create receipt records. Pre-condition: Select at-least one record from the listed batch records.						5. Receipt write-back process completed. The following entries could not be matched in byondpro: [ARTCR/DOCNBR] - [ARTCP/IDINVC] - [ARTCP/AMTPAYM] 7. "batch records line entries exceed more than 200 records. this will slow the receipt write-back. would you like to proceed?"

Receipt Screen	byondpro Data Field		Sage300 Table	Field	Notes
Reciept Amount	rece_amount	Rece_amount	ARTCP	AMTPAYM
Cheque Number	rece_chequenumber	Rece_chequeNumber	ARTCR	IDRMIT
Reciept Number	Rece_accpacReceiptNumber	rece_accpacReceiptNumber	ARTCR	DOCNBR
Payment Type	Rece_PaymentType	rece_PaymentType	ARTCR	CODEPAYM
Reciept Source	Rece_Source	Rece_Source	ARTCR	CNTBTCH
Reciept Source Description	Rece_SourceDescription	rece_SourceDescription	ARBTA	BATCHDESC
Sales and Booking	Rece_OPSSaleId	rece_OPSSaleid	AUSMCXI	OrderHeader
Company Payor	Rece_companyPayer	rece_companypayer	AUSMCXI	OrderHeader	If Company match in byondpro
Payer (Code)	Rece_IdCust	rece_IdCust	ARTCP	IDCUST	If Person match in byondpro
Invoice Number	Rece_invoiceNumber	Rece_Invoicetext	ARTCP	IDINVC
Payer Name	Rece_payorname	rece_payorname	ARCUS	NAMECUST	If Person match in byondpro
Reciept Date	Rece_receiptdate	rece_receiptdate	ARTCR	DATERMIT

To identify the source Sales & Booking ID in byondpro, from the Receipt in the Invoice:

1. Use the reciept on the invoice	Rece_invoiceNumber	Rece_Invoicetext	ARTCP	IDINVC
2. Search the Reciept in byondpro	Rece_PaymentType	rece_PaymentType	ARTCR	CODEPAYM
3. Identify the S&B ID	Rece_OPSSaleId	rece_OPSSaleid	AUSMCXI	orhe_OPSSaleId
4. Write the Reciept entry
